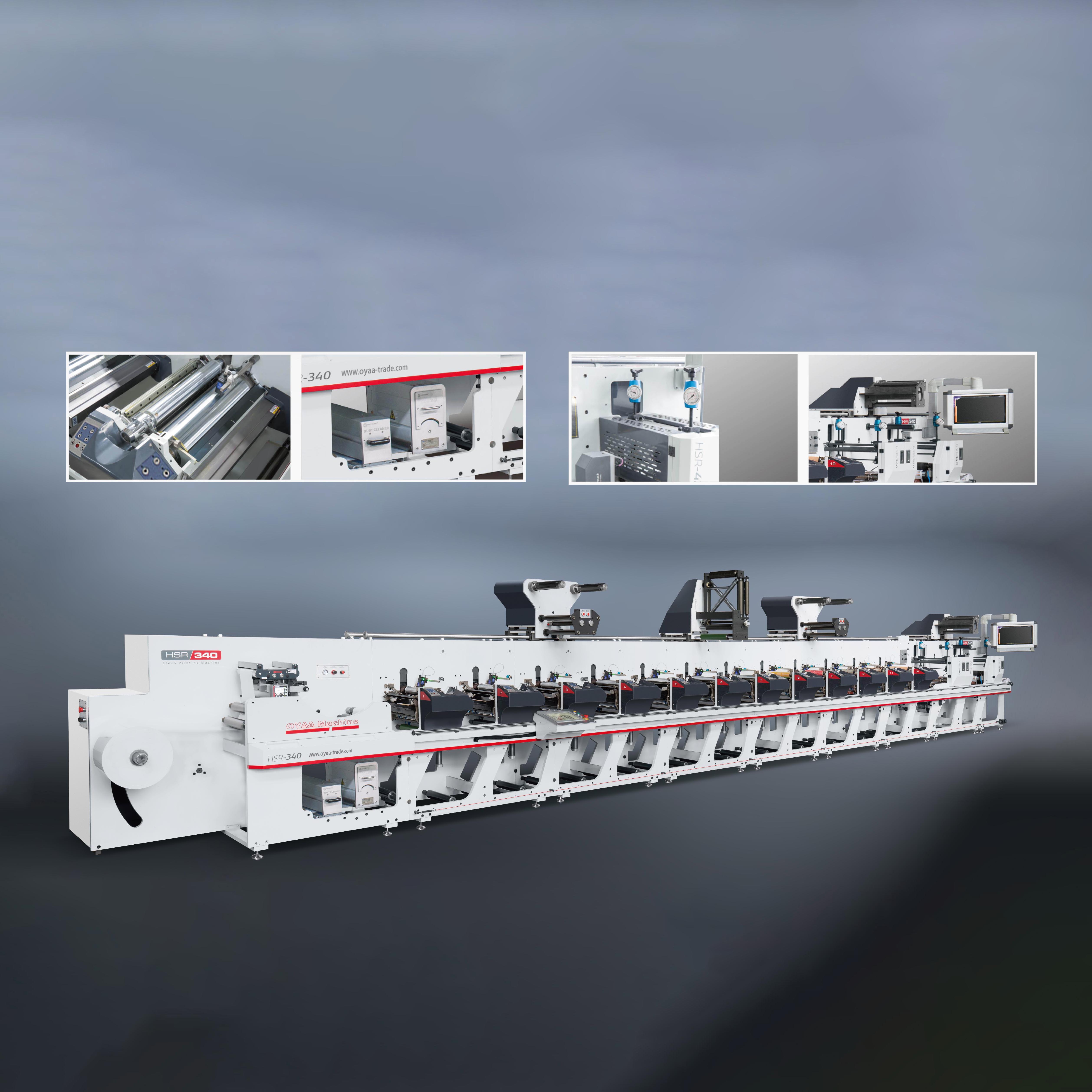

机组式柔版印刷机(套筒式)：Unit Type Flexographic Printing Press (Sleeve Type)

• 整机控制系统采用德国包米勒最新微机伺服控制及操作系统,每机组单元均由双伺服电机驱动,整台机全伺服控制,共采用37个伺服电机,十二色组三模切工位断张+输送台,为机器高速运转中高精度套准提供了保障。

• 版辊筒采用气撑轴套筒式,版辊筒为贴版套筒或雕刻套筒而且不需配齿轮由伺服控制,换版辊筒操作快捷、方便、简单。由于版辊筒上没有齿轮既提高印刷质量又减轻对版辊筒的维护。

• 印刷、传墨压力调整:版辊筒采用走辊枕方式,调节印刷压力及传墨压力时只需要对两边相应的支撑架作微调,版辊筒更换后印刷压力不需要有大的调节,有特殊印刷要求也只需作一点点微调,使印刷的效率大大提高。

• 该机印刷承印辊配有水冷装置,印刷薄膜类材料时不会受UV固化产生的高温影响。

• 该机放卷系统配有电晕,除尘,除静电系统,保证了材料印刷前的稳定性。

• 印刷过程配有高精度的德国BST纠编系统和视频监控设备,为标签印刷时提供更高的保障,



• Machine adopts the latest servo control and operation system from German Baumuller,each unit is driven by double servo motor.The machine is entirely controlled by servo.For each machine,there are 37 servo drivers,12-color,3 die cutting stations and conveying platform,ensuring high precision and stability during the machine runs in high speed.

• Printing roller adopts air support shaft sleeve system,stick sleeve or carving sleeve control by servo(without gear).easy, convenient and fast to change the sleeve.The printing cylinder without gear,which improved the printing quality and reduce the maintenance.

• Printing and ink transfer pressure adjustment: printing roller adopt rolling pillow , only need to fine-tune the corresponding support frame on both side. When change new printing cylinder no need big adjustment, some special printing requirement also only need a little fine-tuning, the printing efficiency gre y improved.

• Anvil roller equips with water chiller,ensure not affect by UV curing temperature when printing film material.

• Unwinding unit equips with corona,dust,static electricity system,ensure the stability before printing.
